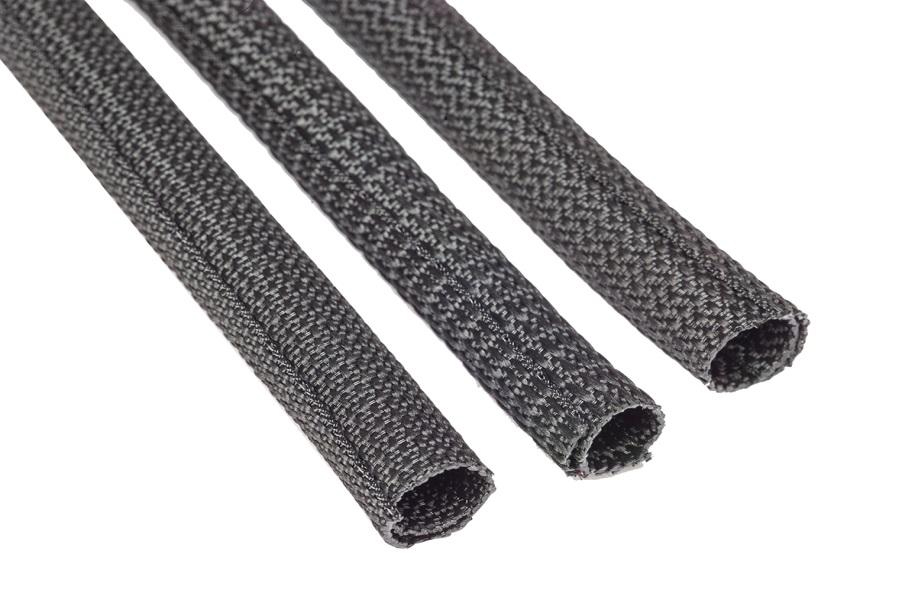

GD-SCK2 Noise Reduction Self-Closing Sleeving
Advanced Cable Protection Solution for Automotive, Rail Transit & Industrial Systems
Key Features
Self-closing open structure for easy installation
Excellent noise reduction and vibration damping
High abrasion resistance for harsh environments
Flame retardant (UL94-V1 standard)
RoHS & Halogen-free compliant
Operating temperature: -50℃ to +150℃
Technical Specifications
| Material | Polyester Monofilament + Multifilament |
|---|---|
| Temperature Range | -50℃ ~ +150℃ |
| Melting Point | 240℃ ±10℃ |
| Flame Rating | UL94-V1 |
| Certification | RoHS, Halogen-Free |
| Standard Color | Black (Custom available) |
Application Industries
Automotive wiring harness protection
High-speed rail electrical systems
Telecommunication networks
Industrial automation equipment
Hydraulic & pneumatic hose protection
Size Range
Available from 5mm to 50mm, suitable for different cable bundle diameters. The expandable structure ensures flexible installation and secure wrapping performance.
| Model | ID (mm) | Max Bundle (mm) | Length |
|---|---|---|---|
| SCK2-005 | 5.0 | 6.0 | 100M |
| SCK2-010 | 10.0 | 11.0 | 100M |
| SCK2-019 | 19.0 | 20.0 | 25M |
| SCK2-050 | 50.0 | 52.0 | 25M |
Why Choose GD-SCK2?
Compared with traditional cable sleeves, GD-SCK2 improves installation efficiency and reduces maintenance cost. Its textile structure helps reduce noise caused by vibration, making it highly suitable for precision industrial environments.
