With the rapid development of automotive electronics, high-speed rail systems, and industrial automation equipment, the demand for advanced wire harness protection materials continues to increase worldwide. Manufacturers are increasingly searching for solutions that combine durability, flame resistance, flexibility, and efficient heat dissipation. Among the latest innovations in cable management products, the Full Polyester Self-Closing Sleeving has emerged as a highly efficient and reliable protection solution for modern wiring systems.
Innovative Open-Weave Structure Improves Cable Management Efficiency

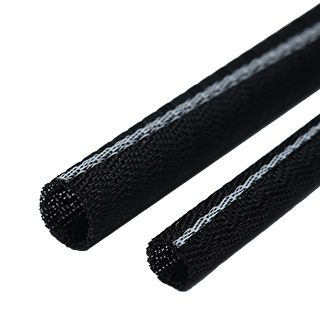

GD-SCP Full Polyester Self-Closing Sleeving is manufactured using high-quality polyester monofilament with an advanced open-weave braided structure. Unlike traditional closed cable sleeves, the self-closing design allows technicians to quickly install, remove, or reorganize wire harnesses without disconnecting the entire cable assembly.
This flexible structure greatly simplifies maintenance, repair, and reassembly operations, making it particularly suitable for industries where complex wiring systems require frequent inspection or replacement. The product is widely used in automotive wiring harness protection, high-speed rail cable management, and various industrial electrical systems.
The open-entry structure not only improves installation efficiency but also enhances airflow around cables, helping reduce heat accumulation in high-performance electrical environments.
Excellent Flame Retardancy and Abrasion Resistance
Safety and durability remain key requirements in modern cable protection applications. The GD-SCP sleeving provides excellent abrasion resistance and flame-retardant performance, meeting demanding industry standards including DIN5510 and VW-1.
In transportation systems such as railway equipment and electric vehicles, cable harnesses are often exposed to vibration, friction, elevated temperatures, and confined installation environments. The polyester monofilament construction offers reliable long-term mechanical protection while maintaining flexibility for routing through narrow spaces.
Additionally, the product complies with RoHS environmental standards, making it suitable for international export markets and environmentally responsible manufacturing requirements.
Technical Specifications
| Property | Details |
|---|---|
| Material | Polyester Monofilament |
| Operating Temperature | -50℃ to +150℃ |
| Melting Point | 240℃ ±10℃ |
| Flame Resistance | DIN5510, VW-1 |
| Certification | RoHS |

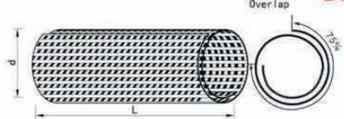

Standard Product Sizes
| Product Part # | Inner Diameter (mm) | Maximum Wrap Diameter (mm) | Packing Length |
|---|---|---|---|
| SCP-005 | 5 | 6 | 100M |
| SCP-008 | 8 | 9 | 100M |
| SCP-013 | 13 | 14 | 100M |
| SCP-019 | 19 | 20 | 50M |
| SCP-025 | 25 | 26 | 25M |
| SCP-029 | 29 | 30 | 25M |
| SCP-038 | 38 | 40 | 25M |
Note: Special packaging, customized colors, and other specifications can be produced according to customer requirements.
Growing Global Demand for Advanced Wire Harness Protection
As electric vehicles, railway systems, and intelligent manufacturing continue expanding globally, the demand for high-performance cable management products is expected to increase steadily. Products combining heat dissipation, flame resistance, flexibility, and efficient installation are becoming essential components in modern electrical engineering projects.GD-SCP Full Polyester Self-Closing Sleeving offers a practical and reliable solution for industries seeking improved cable protection, simplified maintenance operations, and enhanced operational safety. Its combination of durability, flexible installation, and environmental compliance makes it highly suitable for both domestic and international industrial applications.
Product Reference: Full Polyester Self-Closing Sleeving
