How to Use Braided Cable Sleeve: A Step-by-Step Installation Guide
A braided cable sleeve is one of the most effective solutions for protecting cables from abrasion, dust, vibration, and daily wear. It also keeps wire bundles organized, improves airflow, and gives electrical systems a clean, professional appearance.
Whether you're installing cables in an automotive wiring harness, industrial machine, server cabinet, or home entertainment system, learning how to use braided cable sleeve correctly will improve both cable protection and installation efficiency.
At Gendian Materials, we manufacture high-quality Expandable Braided Cable Sleeves for a wide range of industrial and commercial applications.
What Is a Braided Cable Sleeve?

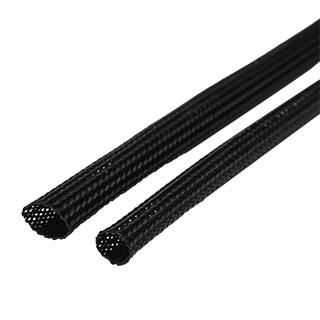

A braided cable sleeve, also known as braided cable sleeving or a braided wire sleeve, is a woven protective tube that bundles and shields wires from abrasion, moisture, chemicals, and mechanical damage.
Because the sleeve expands easily, multiple cables can be inserted quickly while maintaining flexibility for routing around corners and tight spaces.
Tools You May Need
Braided cable sleeve
Scissors or a hot knife
Heat shrink tubing
Cable ties
Measuring tape
Step 1: Measure the Cable Bundle
Measure the outside diameter of the cable bundle before selecting a sleeve. Expandable braided sleeves can increase their diameter, but choosing the correct size makes installation easier and provides better protection.
Step 2: Cut the Braided Cable Sleeve
Cut the sleeve slightly longer than the cable bundle to allow for installation and finishing.
Using a hot knife is recommended because it seals the edges while cutting, reducing fraying. If using ordinary scissors, the ends should be secured immediately after cutting.
Step 3: Expand the Sleeve
Push both ends of the braided sleeve toward the center to expand its diameter. This allows the cable bundle to slide through the sleeve more easily.
The expandable structure is one of the biggest advantages of PET Braided Cable Sleeves, making installation fast even for large wire bundles.
Step 4: Insert the Cables
Feed the cable bundle through the expanded sleeve until the entire wire harness is covered. Adjust the sleeve to ensure it fits evenly without excessive stretching or compression.
Step 5: Secure Both Ends
After positioning the sleeve, secure both ends using heat shrink tubing or cable ties. This prevents the braided sleeve from moving during operation and helps stop the cut edges from fraying.
For professional wire harnesses, heat shrink tubing provides a cleaner appearance and improved long-term durability.
Common Installation Mistakes
Choosing a sleeve that is too small.
Cutting without sealing the edges.
Overstretching the braided sleeve.
Leaving the ends unsecured.
Selecting the wrong material for high-temperature environments.
Where Are Braided Cable Sleeves Used?
Automotive wiring harnesses
Electric vehicles
Industrial automation equipment
Robotics
Server cabinets
Consumer electronics
Home theater systems
Marine electrical systems
Why Choose Gendian Materials?
Gendian Materials offers a complete range of braided cable sleeving solutions, including PET expandable braided sleeves, high-temperature fiberglass sleeving, hybrid braided sleeves, and customized cable protection products.
Our products are designed to provide excellent abrasion resistance, flexibility, flame retardancy, and long service life for demanding industrial applications.
Conclusion
Knowing how to use braided cable sleeves correctly helps protect electrical wiring, improve cable organization, and extend the life of your wiring system. By selecting the correct sleeve size, using proper cutting tools, and securing both ends, you can achieve a clean and reliable cable installation.
If you're looking for high-quality braided cable sleeves or custom cable protection solutions, Gendian Materials is ready to support your project with professional products and engineering expertise.
