What Is Braided Cable Sleeve? Features, Types and Applications
Braided cable sleeve, also known as braided sleeving, braided cable sleeving, or braided wire sleeve, is a flexible protective covering designed to organize, protect, and extend the service life of wires, cables, and hoses. Made from high-performance materials such as PET polyester, nylon, fiberglass, and other engineered fibers, braided cable sleeves provide excellent abrasion resistance, flexibility, and mechanical protection.
Unlike traditional cable protection solutions, braided cable sleeve features an expandable woven structure that allows it to easily wrap around cables with different diameters.
This makes it widely used in electronics, automotive, industrial equipment, aerospace, electrical systems, and consumer products.
What Is Braided Cable Sleeve?
A braided cable sleeve is a woven tube structure manufactured by interlacing multiple strands of material together. The unique braided design allows the sleeve to expand and contract, making installation easier while providing complete coverage for cables and wires.
Compared with ordinary plastic cable covers, braided cable sleeves offer several advantages:
Flexible installation for irregular cable shapes
Excellent abrasion resistance
Improved cable organization
Protection against mechanical damage
Better appearance for cable management
Improved heat dissipation performance
How Does Braided Cable Sleeve Work?
The working principle of braided cable sleeve is based on its expandable woven structure. When the sleeve is compressed, the diameter increases, allowing cables to be inserted easily. When stretched, the diameter becomes smaller and the sleeve tightly wraps around the cable bundle.
Select the appropriate braided cable sleeve size according to cable diameter.
Insert wires or cables into the expandable sleeving.
Stretch the sleeve to achieve a tight protective fit.
Secure both ends using heat shrink tubing, clamps, or cable ties.
Key Features of Braided Cable Sleeve
1. Excellent Abrasion Resistance
One of the biggest advantages of braided cable sleeve is its ability to protect cables from friction and mechanical wear.
In applications where wires are exposed to movement, vibration, or sharp edges, braided sleeving helps prevent insulation damage and extends cable service life.
2. Expandable and Flexible Design
Expandable braided sleeving can expand significantly from its original diameter, allowing it to accommodate multiple cables or irregular shapes.
3. Lightweight and Flexible Cable Protection
Compared with rigid cable protection solutions, braided cable sleeve provides excellent protection while maintaining flexibility and low weight. This makes it especially suitable for applications where space limitations and weight reduction are important.
In industries such as automotive, aerospace, and electronic equipment, engineers often choose expandable braided sleeving because it can protect complex wiring systems without adding unnecessary weight.
4. Excellent Airflow and Heat Dissipation
The open woven structure of braided cable sleeve allows air circulation around cables. Compared with fully enclosed cable protection tubes, braided sleeving helps reduce heat accumulation and improves thermal management.
This feature makes braided cable sleeves suitable for electronic equipment, power systems, and industrial machinery where cable temperature control is important.
5. Flame Resistant Protection Options
For applications requiring enhanced safety, flame resistant braided cable sleeves are available. Special flame-retardant materials can provide additional protection against heat and fire risks.
These solutions are commonly used in automotive wiring, rail transportation, aerospace equipment, and industrial electrical systems.
Types of Braided Cable Sleeve

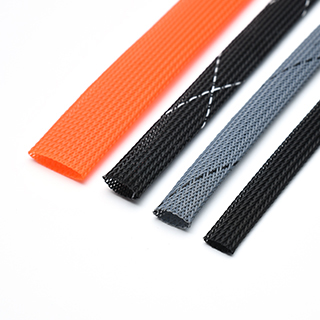

PET Braided Cable Sleeve
PET braided cable sleeve is one of the most popular cable protection solutions due to its excellent balance of abrasion resistance, flexibility, durability, and cost efficiency.
PET Expandable Braided Sleeving can easily expand to fit different cable diameters and provides reliable protection for wire harnesses and cable assemblies.
For more information about PET cable protection solutions, visit our PET Braided Cable Sleeveproduct page.
Nylon Braided Sleeving
Nylon braided sleeving offers excellent toughness and wear resistance. It is suitable for applications requiring repeated bending, mechanical strength, and long-term durability.
Common applications include automotive wiring systems, industrial equipment, and moving cable assemblies.

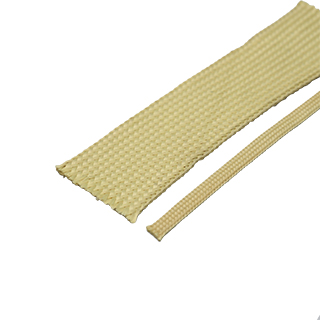

Fiberglass Braided Sleeve
Fiberglass braided sleeve is designed for high-temperature environments where thermal protection and fire resistance are required.
It is commonly used with heating equipment, industrial machinery, and high-temperature electrical systems.
For applications requiring extreme heat protection, Gendian also provides high temperature fiberglass sleevesolutions.
Applications of Braided Cable Sleeve
Automotive Wiring Protection
Modern vehicles contain increasingly complex wiring systems that require protection from vibration, abrasion, heat, and mechanical stress.
Braided wire sleeve is widely used for protecting:
Engine wiring harnesses
Battery cables
Sensor wires
Electrical connectors
Electronics and Electrical Equipment
In electronic devices, braided cable sleeving improves cable organization while protecting wires from abrasion and external damage.
Typical applications include:
Computer cables
Power cables
Communication equipment
Electronic assemblies
Industrial Equipment
Industrial machines require reliable cable protection against continuous movement, vibration, dust, and mechanical impact.
Braided cable sleeve is widely applied in:
Automation equipment
Robotics systems
Control cabinets
Machinery wiring systems
Braided Cable Sleeve vs Heat Shrink Tubing
Braided cable sleeve and heat shrink tubing are both widely used cable protection solutions, but they serve different purposes.
| Feature | Braided Cable Sleeve | Heat Shrink Tubing |
| Flexibility | Excellent flexibility and expansion capability | Fixed protective sealing layer |
| Installation | Easy installation and removal | Requires heating process |
| Main Function | Cable organization and abrasion protection | Insulation and sealing protection |
| Applications | Wire harnesses, cables, equipment wiring | Electrical insulation and environmental sealing |
For applications requiring both mechanical protection and insulation performance, braided sleeving can also be combined with heat shrink tubingto create a complete cable protection solution.
How to Choose the Right Braided Cable Sleeve?
Selecting the correct braided cable sleeve depends on the working environment and protection requirements.
Cable diameter and expansion range
Required abrasion resistance
Operating temperature
Flame resistance requirements
Chemical exposure conditions
Installation environment
Gendian Materials provides customized braided cable sleeve solutions with different materials, sizes, colors, and performance options to meet various industrial requirements.
Conclusion
Braided cable sleeve is an effective solution for protecting wires and cables from abrasion, vibration, heat, and mechanical damage.
With different material options including PET, nylon, and fiberglass, braided sleeving can meet the requirements of automotive, electronics, industrial, aerospace, and electrical applications.
As a professional manufacturer of cable protection products, Gendian Materials provides reliable braided cable sleeve solutions and customized services for global customers.
