Why Expandable Braided Sleeves Are Replacing Traditional Cable Protection in Modern Industries
As electrical systems become more complex, cable protection is no longer just about bundling wires together. Modern industries require solutions that can withstand abrasion, vibration, heat, chemicals, UV exposure, and constant movement while maintaining flexibility and easy installation.
This is why Expandable Braided Sleeves have rapidly become the preferred cable management and protection solution across automotive manufacturing, robotics, aerospace, industrial automation, renewable energy systems, and consumer electronics.
At Gendian Materials, we manufacture a complete range of braided sleeving products designed to protect wire harnesses, hoses, cables, and tubing in demanding environments.
According to industry trends, braided cable protection systems are increasingly replacing corrugated conduits and PVC tubing due to their superior flexibility, lighter weight, better airflow, and easier installation in confined spaces.
What Is an Expandable Braided Sleeve?

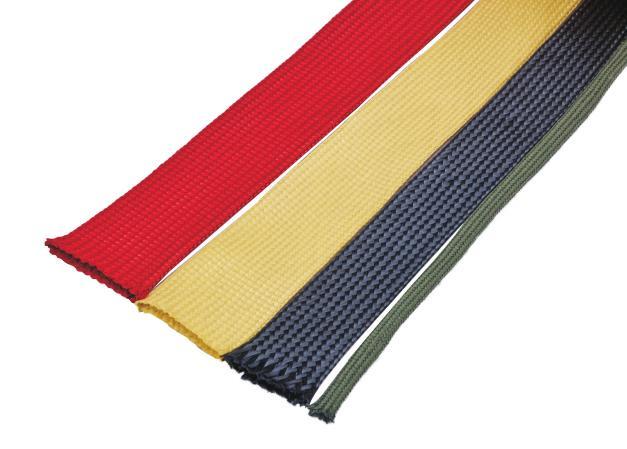

An expandable braided sleeve is a woven tubular structure manufactured from high-performance monofilament fibers such as PET, Nylon (PA), Kevlar, Fiberglass, or hybrid materials. The braided construction allows the sleeve diameter to expand significantly during installation and contract afterward to provide a secure fit around cables and wire bundles.
Unlike rigid conduits, braided sleeving can easily navigate tight corners, complex routing paths, and irregular cable assemblies while maintaining protection against external damage. This flexible design has made expandable sleeving one of the most widely used cable protection solutions in modern engineering systems. :contentReference[oaicite:0]{index=0}
Why Engineers Prefer Braided Sleeves Over Traditional Conduits
| Feature | Braided Sleeve | PVC Conduit | Corrugated Tube |
|---|---|---|---|
| Flexibility | Excellent | Moderate | Limited |
| Weight | Lightweight | Heavy | Medium |
| Heat Dissipation | Excellent | Poor | Moderate |
| Abrasion Protection | Excellent | Good | Good |
| Installation Speed | Fast | Slow | Medium |
| Aesthetic Appearance | Professional | Basic | Industrial Only |
The open weave construction allows better airflow around cables, reducing heat accumulation while maintaining protection against mechanical wear. This combination of protection and flexibility explains why braided sleeving is widely used in advanced cable management systems. :contentReference[oaicite:1]{index=1}
Common Braided Sleeve Materials and Their Applications
1. PET Expandable Braided Sleeving
PET (Polyethylene Terephthalate) remains the most popular material due to its excellent balance between cost, durability, flexibility, and abrasion resistance.
Explore:PET Expandable Braided Sleeving
| Property | Value |
|---|---|
| Operating Temperature | -40°C to +150°C |
| Melting Point | 250°C - 260°C |
| Expansion Ratio | Up to 150% |
| Abrasion Resistance | Excellent |
| Chemical Resistance | Excellent |
2. Flame Retardant PET Braided Sleeve
For railway, automotive, aerospace, and battery systems, flame retardancy is often mandatory.
ThePET High Flame-Retardant Expandable Braided Sleevingoffers UL94 V0 flame resistance and is widely used in EV wiring harnesses and transportation systems. :contentReference[oaicite:2]{index=2}
3. PA+PET Hybrid Sleeving
Hybrid structures combine the flexibility of PET with the superior wear resistance of Nylon, making them suitable for robotics and industrial automation environments where cables experience repeated motion and vibration.
View:PA+PET Hybrid Expandable Braided Sleeving
4. Kevlar Braided Sleeving
Kevlar braided sleeves are selected for aerospace, military, and high-impact industrial applications due to their exceptional tensile strength and cut resistance.
5. Fabric Heat Shrink Braided Sleeving
Heat shrink braided sleeving combines mechanical protection with sealing performance. Once heated, the sleeve tightly conforms to the cable bundle, reducing movement and improving environmental protection.
Explore:Fabric Heat Shrink Braided Sleeving
Industries Driving the Demand for Braided Sleeves
Automotive Industry
Modern vehicles contain several kilometers of wiring. Braided sleeves protect wire harnesses from vibration, heat, fluids, and mechanical abrasion within engine compartments and battery systems. :contentReference[oaicite:3]{index=3}
Electric Vehicles (EVs)
The rapid growth of EV manufacturing has significantly increased demand for flame-retardant and lightweight cable protection solutions. Braided sleeves help improve safety while reducing overall vehicle weight.
Industrial Automation
Robotic arms and automated production lines require cable protection that can withstand continuous motion cycles. Hybrid braided sleeves offer long-term durability without restricting movement. :contentReference[oaicite:4]{index=4}
Data Centers
Cable organization is essential for airflow management and maintenance efficiency. Braided sleeving provides a clean and professional cable routing solution that simplifies upgrades and inspections. :contentReference[oaicite:5]{index=5}
Aerospace and Aviation
Weight reduction is critical in aircraft design. Braided sleeves provide robust protection while contributing significantly less weight than traditional conduit systems. :contentReference[oaicite:6]{index=6}
How to Select the Right Braided Sleeve
| Application | Recommended Sleeve |
|---|---|
| General Cable Management | PET Expandable Braided Sleeve |
| Automotive Wiring Harness | Flame Retardant PET Sleeve |
| Robotics & Automation | PA+PET Hybrid Sleeve |
| Extreme Heat Protection | Fiberglass Sleeving |
| Military & Aerospace | Kevlar Braided Sleeve |
| Sealed Cable Bundles | Fabric Heat Shrink Braided Sleeve |
Installation Best Practices
Measure cable bundle diameter before selecting sleeving size.
Choose sleeving capable of expanding at least 25% beyond bundle diameter.
Use hot knife cutting tools to minimize fraying.
Secure sleeve ends using heat shrink tubing.
Avoid excessive tension during installation.
Perform periodic inspections in high-vibration environments.
Proper installation significantly extends service life and maintains optimal cable protection performance. :contentReference[oaicite:7]{index=7}
Why Manufacturers Worldwide Choose Gendian Materials
As a specialized manufacturer of heat shrink tubing, extruded tubing, and braided sleeving solutions, Gendian Materials supplies products used across automotive, electronics, industrial machinery, renewable energy, and transportation industries. :contentReference[oaicite:8]{index=8}
Customized diameters and colors
RoHS & REACH compliant materials
Flame retardant options available
OEM and ODM support
Stable quality control system
Global export experience
Further Reading
Internal Resources:
External References:
Conclusion
Expandable braided sleeves have evolved from simple cable organizers into critical components of modern electrical and mechanical systems. Whether protecting automotive wire harnesses, industrial robotic cables, aerospace assemblies, or data center infrastructure, braided sleeving delivers an unmatched combination of flexibility, durability, and installation efficiency.
As industries continue moving toward lighter, smarter, and more compact systems, braided cable protection solutions will remain a key technology for improving reliability, safety, and long-term performance.
