Heat-Shrinkable silicone rubber tubing: Ultimate Protection for Your Applications

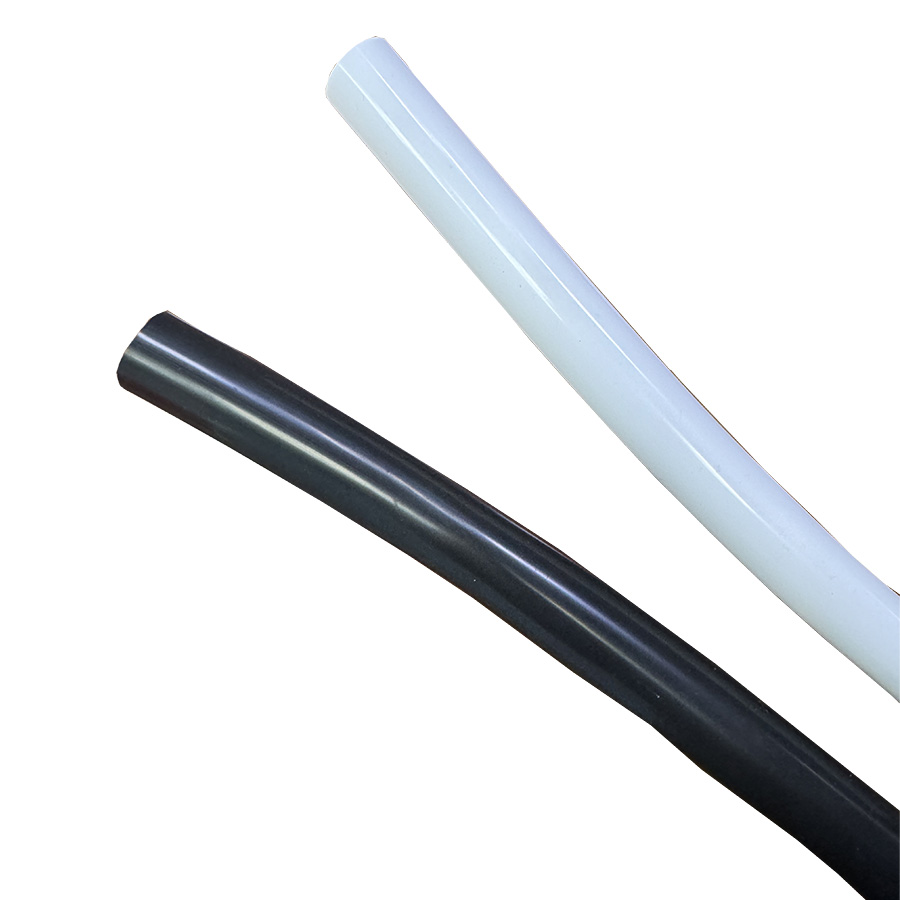

Heat-shrinkable Silicone Rubber Tubing is a type of tubing made from silicone rubber that can be shrunk or contracted when heated. This material is known for its excellent heat resistance, flexibility, and electrical insulation properties.

Key Features and Benefits

1. Excellent Heat Resistance

• Wide Temperature Range: Silicone rubber tubing can withstand extreme temperatures, typically ranging from -50°C to 200°C (-58°F to 392°F). This makes it suitable for use in both high and low-temperature environments.

• Thermal Stability: The material maintains its physical properties and performance even when exposed to high temperatures, ensuring long-term reliability.

2. Superior Electrical Insulation

• High Dielectric Strength: The tubing provides excellent electrical insulation, helping to prevent electrical shorts and protecting sensitive components from electrical interference.

• Low Electrical Conductivity: Silicone rubber is a non-conductive material, making it ideal for insulating electrical wires and cables.

3. Flexible and Resilient

• Flexibility: Silicone rubber tubing remains flexible even at low temperatures, allowing it to conform to various shapes and sizes. This flexibility is crucial for applications requiring movement or bending.

• Resilience: The tubing is resistant to tearing and abrasion, providing durable protection against mechanical damage.

4. Chemical and Weather Resistance

• Chemical Resistance: Silicone rubber tubing resists a wide range of chemicals, including oils, fuels, and solvents. This makes it suitable for use in harsh chemical environments.

• Weather Resistance: It is also resistant to UV rays, ozone, and weathering, ensuring that it remains effective in outdoor applications and exposed environments.

5. Shrink Ratio and Conformability

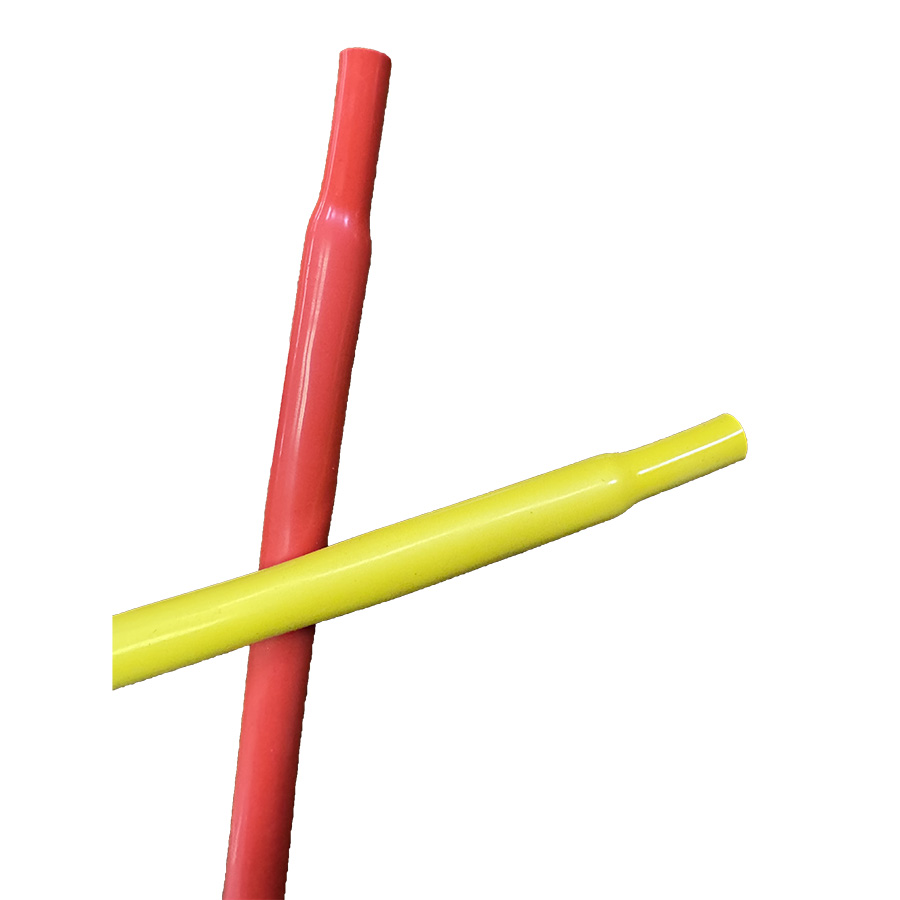

• Controlled Shrink Ratio: Heat-shrinkable silicone rubber tubing shrinks to a predetermined diameter when heated, allowing it to fit snugly around cables and components. The typical shrink ratio is 2:1, but other ratios are available based on specific needs.

• Conformability: The tubing conforms to the shape of the underlying surface, providing a tight and secure fit that enhances protection and insulation.

6. Flame Retardant

• Flame Resistance: Silicone rubber has inherent flame-retardant properties, which means it will not easily catch fire and will self-extinguish if exposed to flames. This adds an extra layer of safety to electrical and mechanical systems.

7. Easy Application

• Simple Installation: Applying heat-shrinkable silicone rubber tubing is straightforward. It involves sliding the tubing over the component and applying heat to shrink it into place. This ease of installation makes it a popular choice for both professionals and DIY enthusiasts.

8. Environmental Compliance

• RoHS Compliant: Many heat-shrinkable silicone rubber tubings are compliant with the Restriction of Hazardous Substances (RoHS) directive, ensuring they do not contain harmful levels of certain hazardous materials.

Common Applications

• Automotive Industry: Used in engine compartments, wiring harnesses, and other areas where high temperatures and electrical insulation are required.

• Electrical Applications: Used as insulation for wires and cables, protecting them from damage and electrical hazards.

• Aerospace and Defense: Used in aircraft and spacecraft where extreme temperatures and electrical insulation are critical.

• Industrial Machinery: Protects hydraulic and pneumatic lines from heat and abrasion.

• Marine Applications: Provides corrosion and water resistance in marine environments.

Heat-shrinkable silicone rubber tubing is a versatile and durable product used in various industrial and commercial applications. Its unique properties make it an excellent choice for protecting and insulating cables and components.
